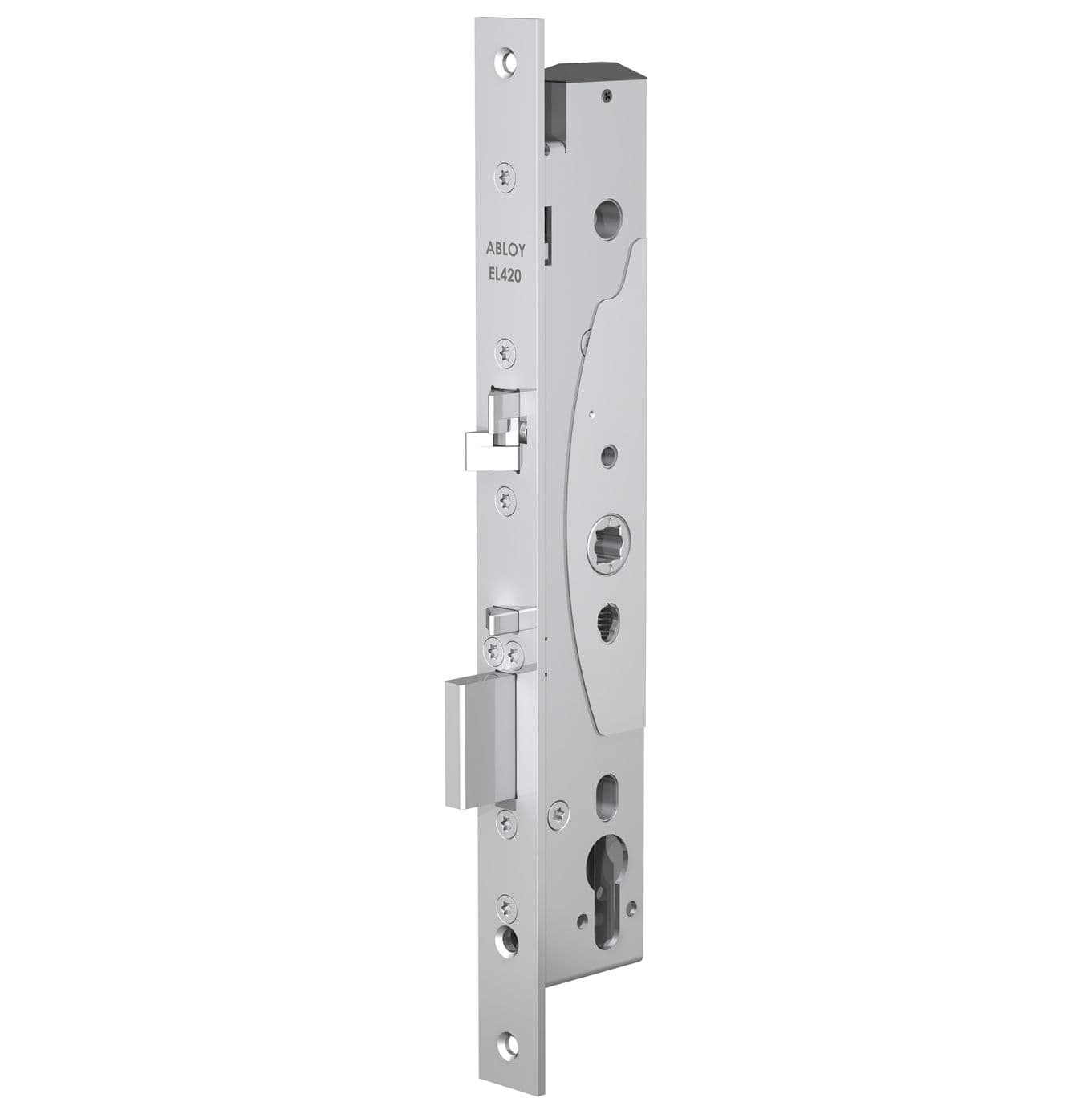

Abloy EL420
« backThe ABLOY EL420 Electric Motor Lock is designed for wooden or metal doors with a narrow stile.
The EL420 is available the following backsets: 30mm, 35mm, 40mm, 45mm
SAFETY SECURED
The EL420 is part of the ABLOY CERTA range which delivers proven burglary resistance up to 60 000 N and intelligent electronic security measures, including ACC indication, anti-tampering countermeasures, EMC and two-way ACC. With your safety always in mind, the new motor locks guarantee trouble-free exit in case of emergency, making them ideal for critical entrance and exit doors.
EL420 APPLICATIONS:
- entrance doors, corridor doors
- high traffic exit doors and access controlled doors
- fire rated doors
- doors with door automatics
FUNCTION:
- a pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
In RELATED PRODUCTS section:
EL520 push & pull function lock case for solid doors.
The EL420 is designed For narrow stile doors.
With deadbolt and anti-friction bolt.
Fail locked outside.
Free egress from inside when handle fitted.
Control unit included.
Meets EN1125 when used with 990001-SE panic bar.
The EL420 is available the following backsets: 30mm, 35mm, 40mm, 45mm
SAFETY SECURED
The EL420 is part of the ABLOY CERTA range which delivers proven burglary resistance up to 60 000 N and intelligent electronic security measures, including ACC indication, anti-tampering countermeasures, EMC and two-way ACC. With your safety always in mind, the new motor locks guarantee trouble-free exit in case of emergency, making them ideal for critical entrance and exit doors.
EL420 APPLICATIONS:
- entrance doors, corridor doors
- high traffic exit doors and access controlled doors
- fire rated doors
- doors with door automatics
FUNCTION:
- a pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
In RELATED PRODUCTS section:
EL520 push & pull function lock case for solid doors.
The EL420 is designed For narrow stile doors.
With deadbolt and anti-friction bolt.
Fail locked outside.
Free egress from inside when handle fitted.
Control unit included.
Meets EN1125 when used with 990001-SE panic bar.
Brand: Abloy
MPN: EL420
