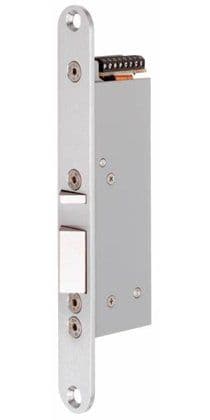

Abloy 351U80 Electric Lock
« backThe Abloy 351 U80 is suitable for use on single double action swing through doors. Its slimline design means that it can be fitted to the frame rather than the door. It is particularly useful on pairs of doors when locking can only be achieved by fitting into the top of the frame, (an excellent alternative when surface mount electric locks will not fit). The construction of the lock allows it to function in various mounting orientations, making it a very flexible option. (Not suitable for bottom rail mounting).
The 351U80 is designed to release under extreme side loading when fail unlocked operation is required.
While it will operate under extreme side pressure, it is also pressure resistant to intrusion.
Facts and Features
The 351U80 is designed to release under extreme side loading when fail unlocked operation is required.
While it will operate under extreme side pressure, it is also pressure resistant to intrusion.
Facts and Features
- 12Vdc fail safe
- Suitable for use with both single and double action doors
- Non handed
- Monitored
- Meets prEN 13637 European Building Hardware standard
- Releases under side pressure up to 510kg (1125Ib)
- Also available in 24Vdc
- Supplied with 43mm strike plate, 57mm also available
MPN: 351U80
